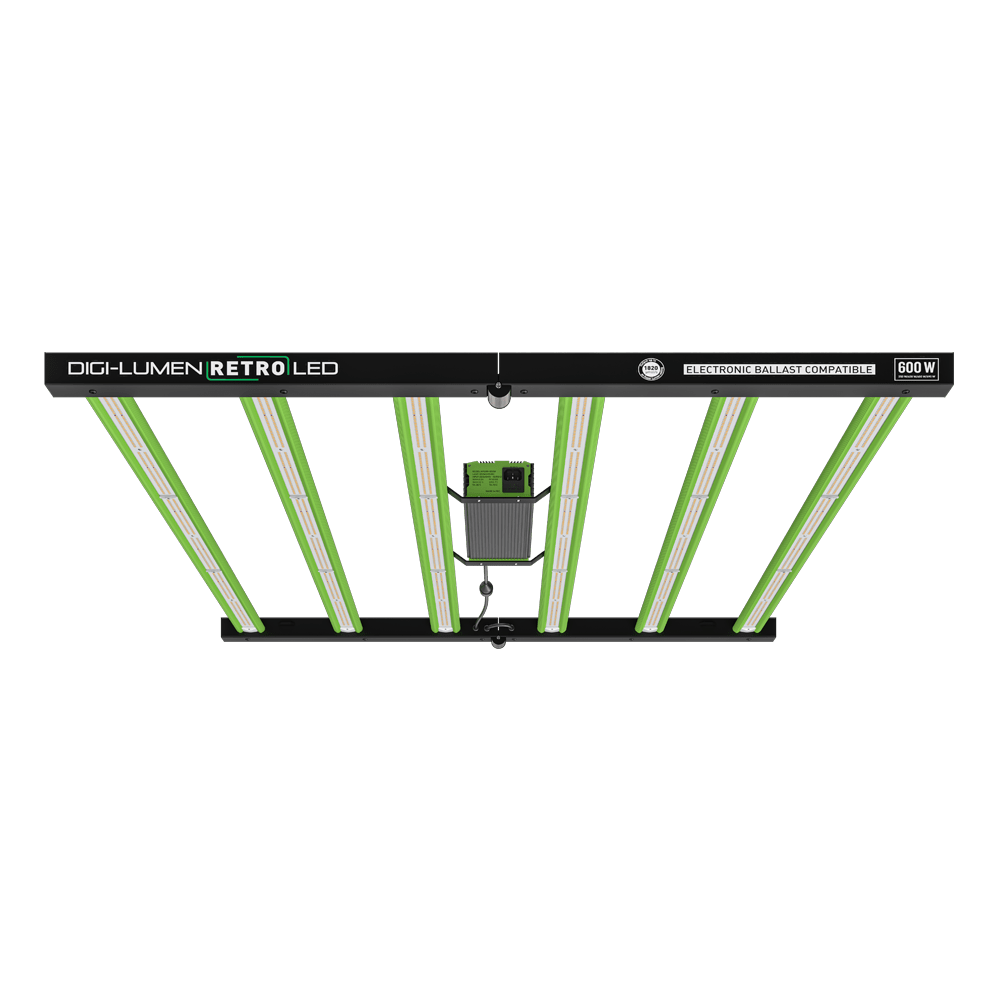

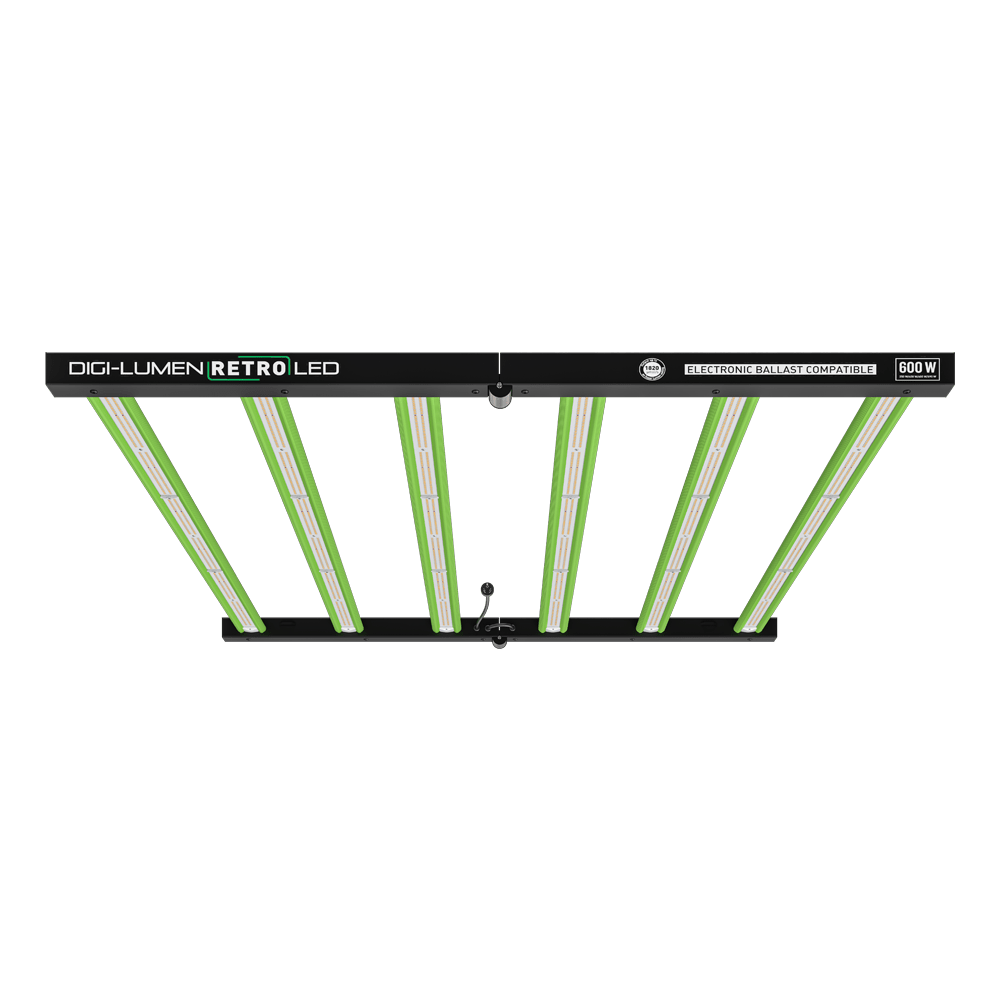

Digi-Lumen LED Array - includes DL600BPWM ballast

The new Digi-Lumen LED Array is the first LED to operate directly from any 600 W Electronic Ballast. The LED Array features 720 Watts of Optimum White and Optimum Red diodes to ensure there’s plenty of LED power when operated on boost settings. Immediately increase your light output from 1100 µmol/s (HPS lamp) up to 1820 µmol/s with the Digi Lumen LED Array.
Learn more

Plug and play with the RETRO LED Array

Illuminates up to a 1.5 m2 area.

1820 µmol/s

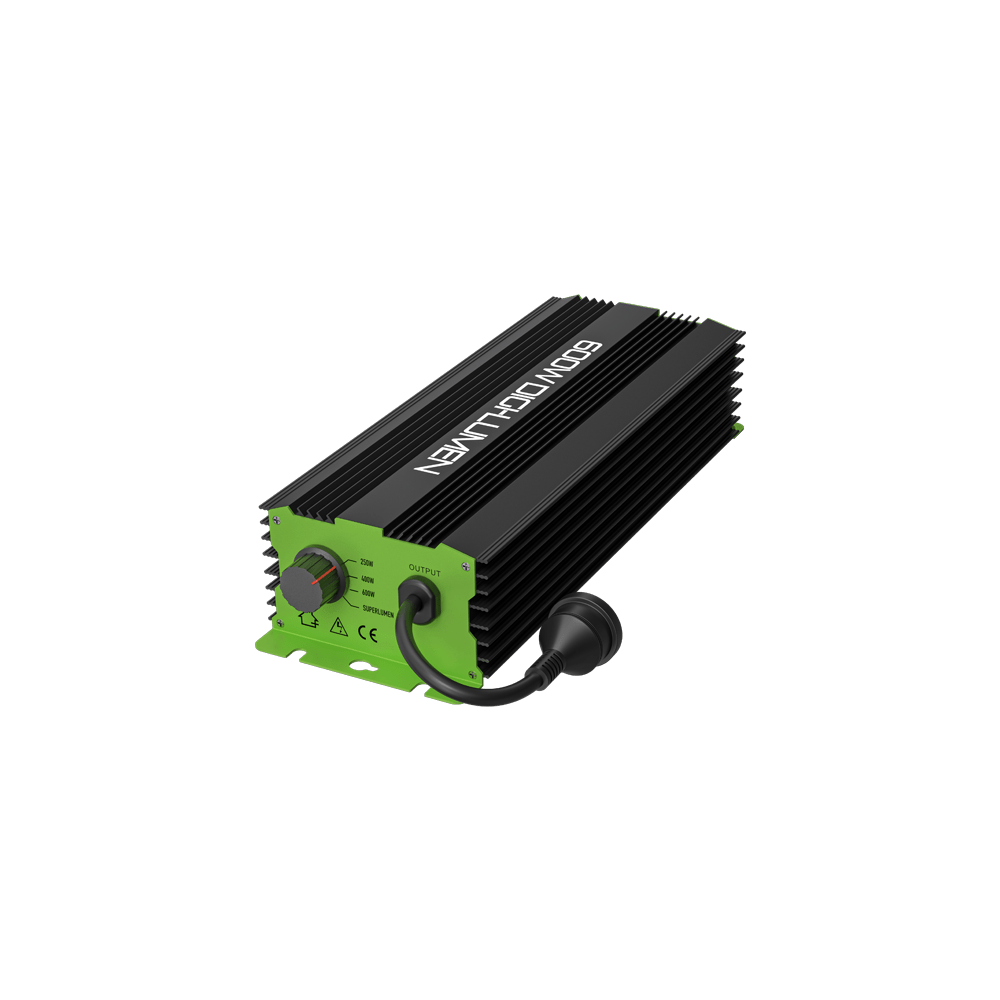

Compatible with the DIGI-LUMEN HPS Electronic Ballast. Mount the ballast directly to the LED array via the supplied brackets or remotely using the supplied
5 m cord.

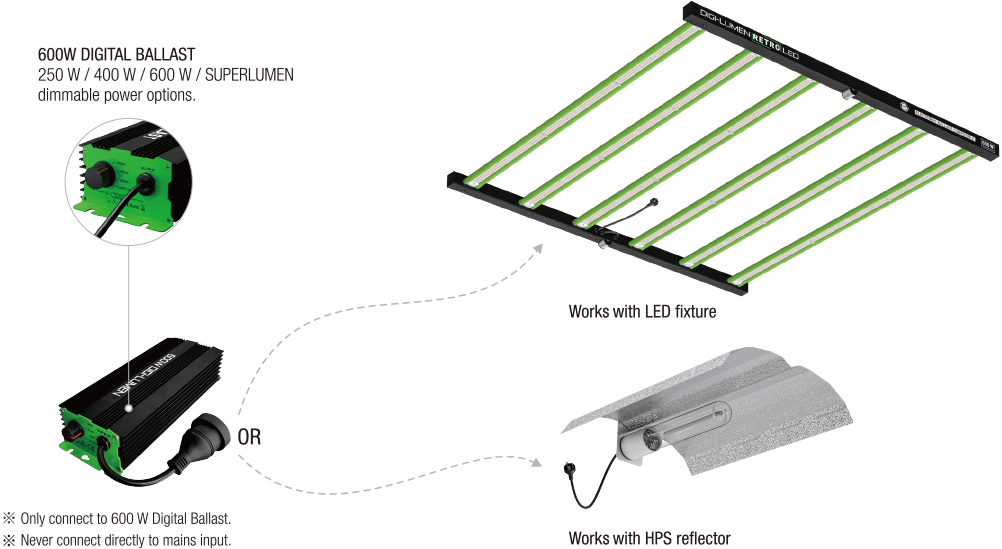

600 W Digital Ballast Compatible

250 W/400 W/600 W/ 690 W (Super Lumen) dimmable power options.

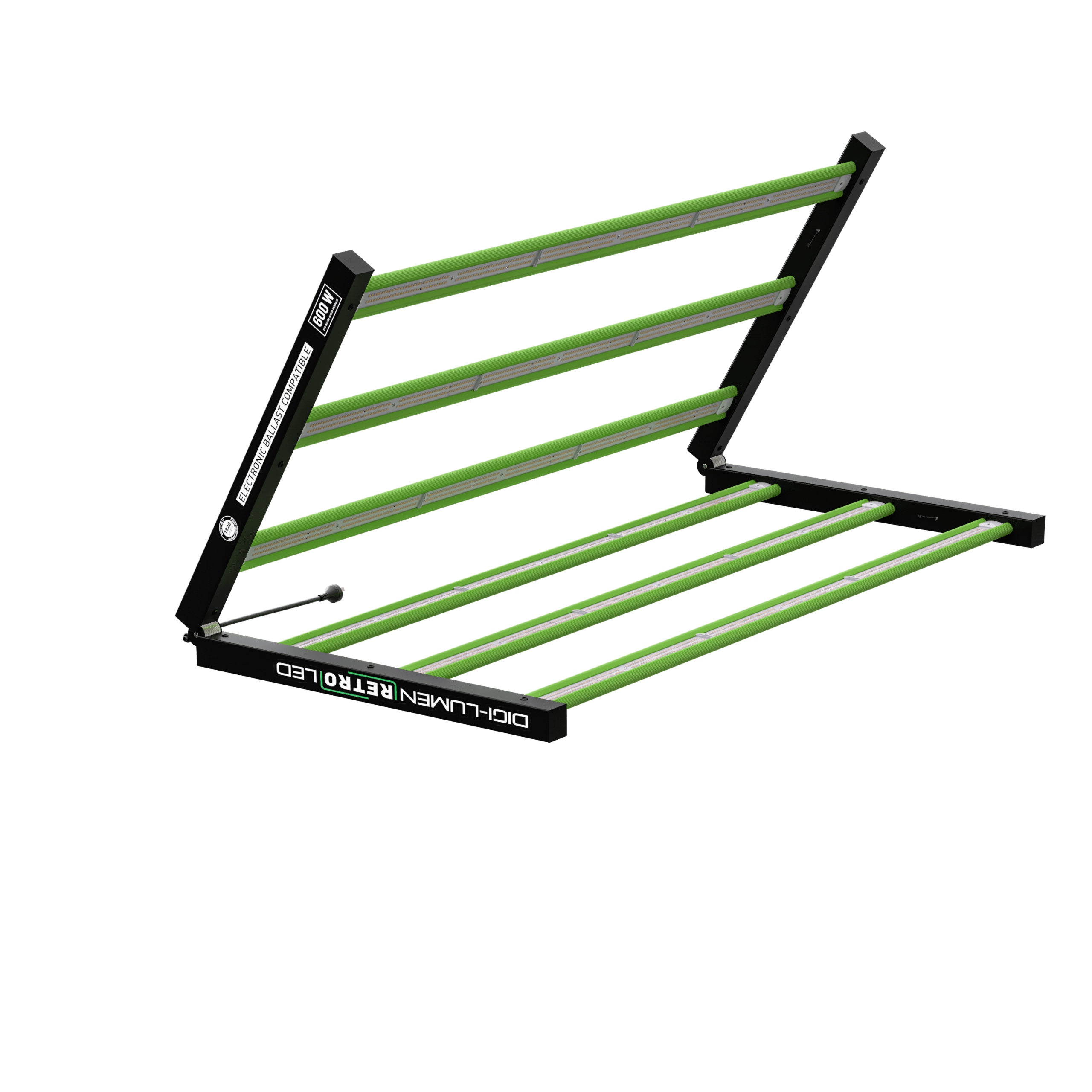

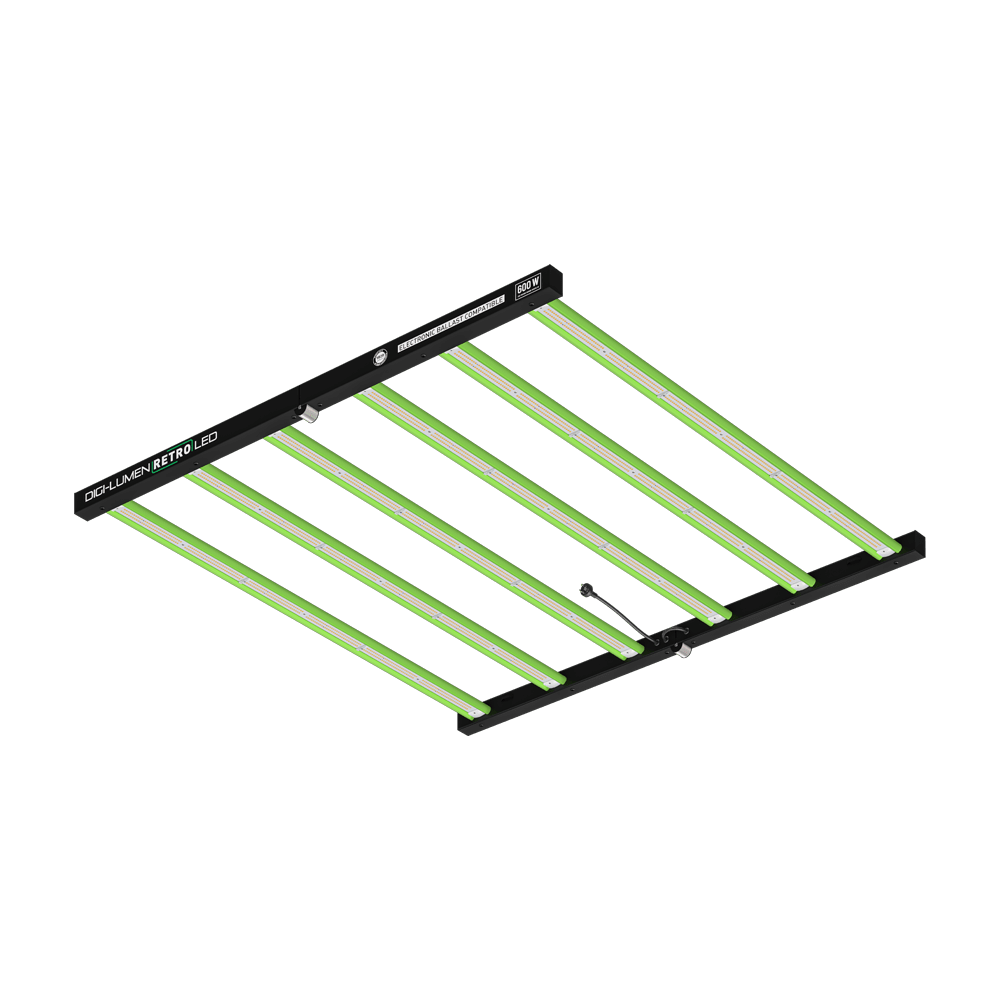

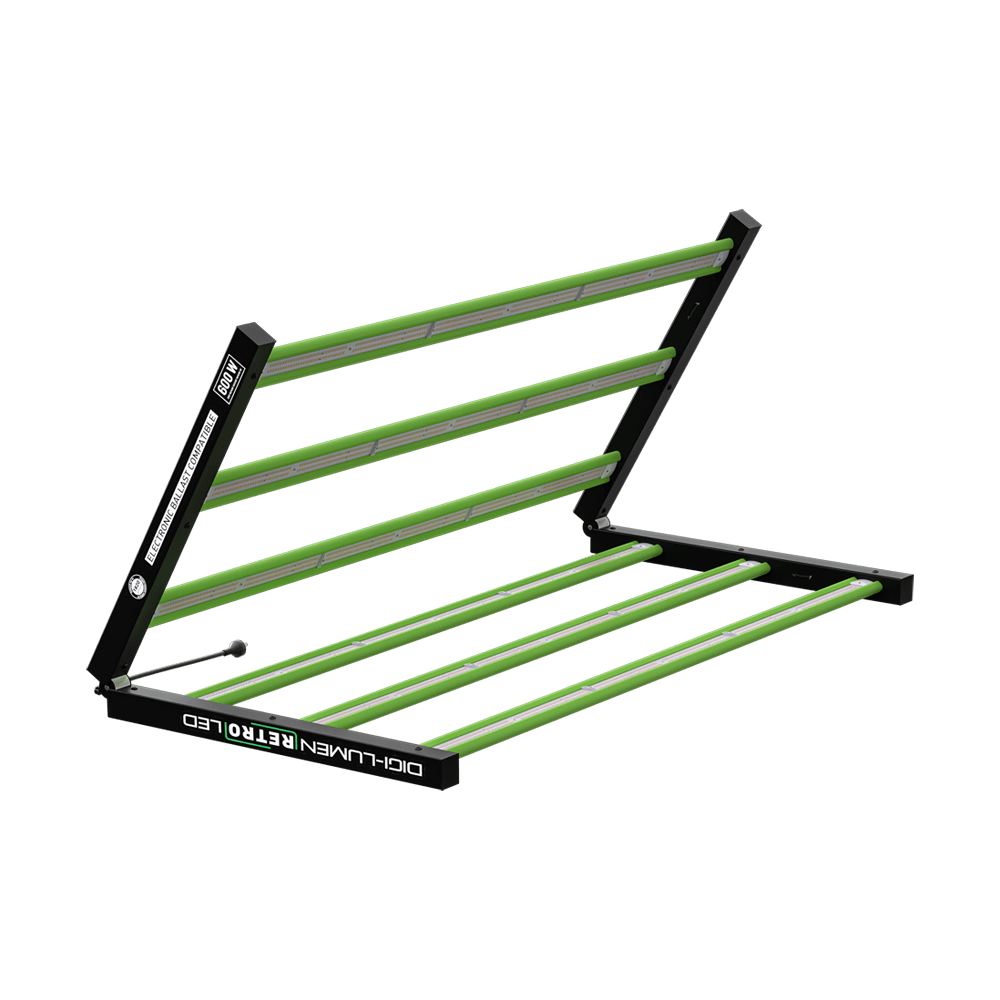

180 degree foldable design

Foldable design feature for easy storage & transport.

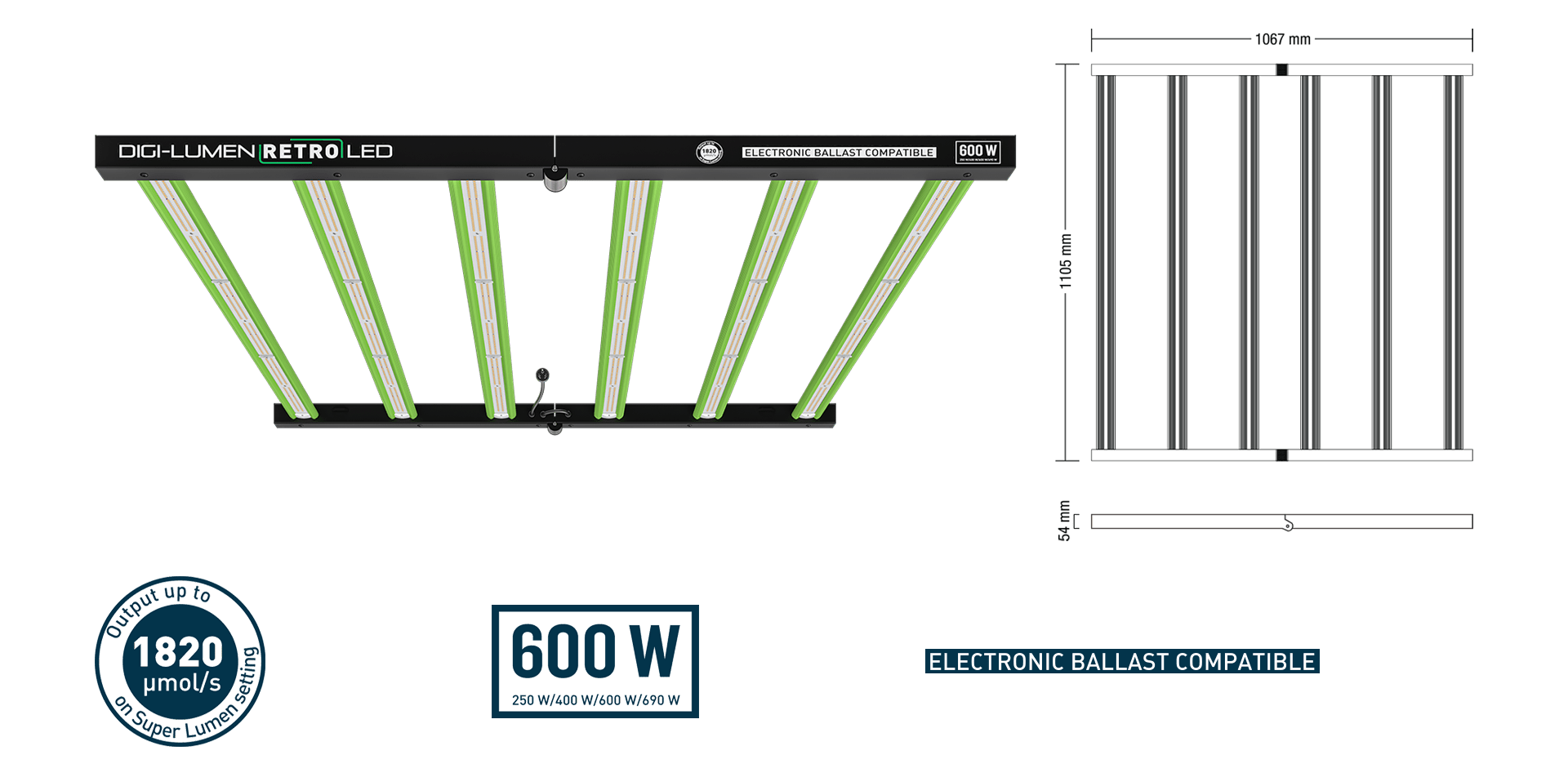

Better light coverage

The immediate benefits of the RETRO LED over 600 W HPS lamps include a light output increase of over 60% and a broadened PAR spectrum from 30 CRI to 80 CRI (Colour Rendering Index). Illuminates up to a 1.5 m2 area. Plug and play with the RETRO LED Array.

Up to 1.5 m2 coverage

600 W Digital Ballast
compatible

Powered and controlled by a 600 W Electronic Ballast (sold separately).

This LED fixture is for indoor use only (climate-controlled indoor farms and grow rooms). The spectrum output for this LED fixture is specially designed and manufactured for horticultural use only.

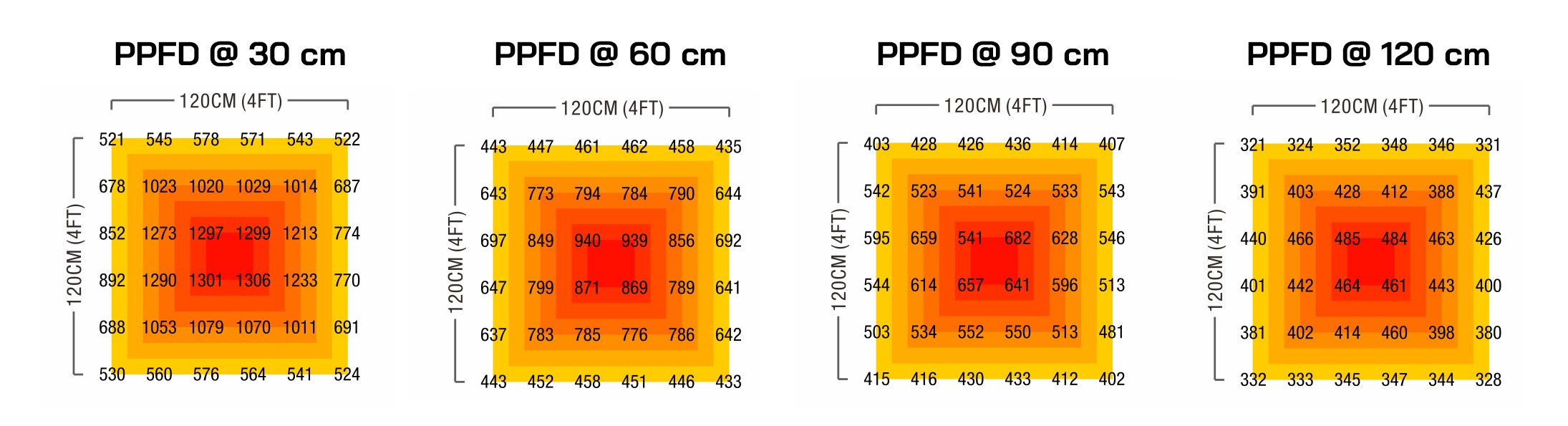

Output specifications

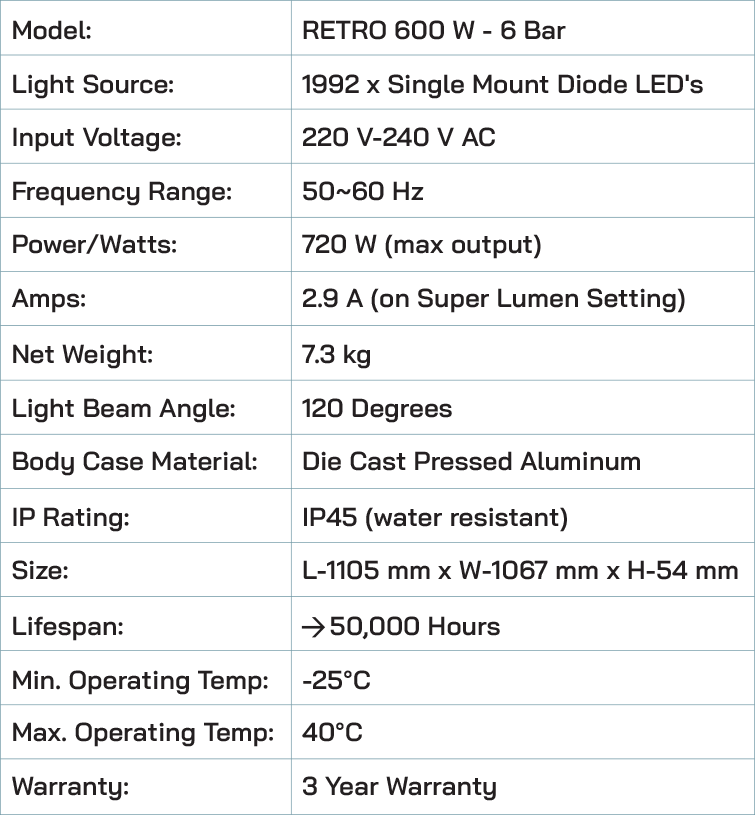

technical specifications

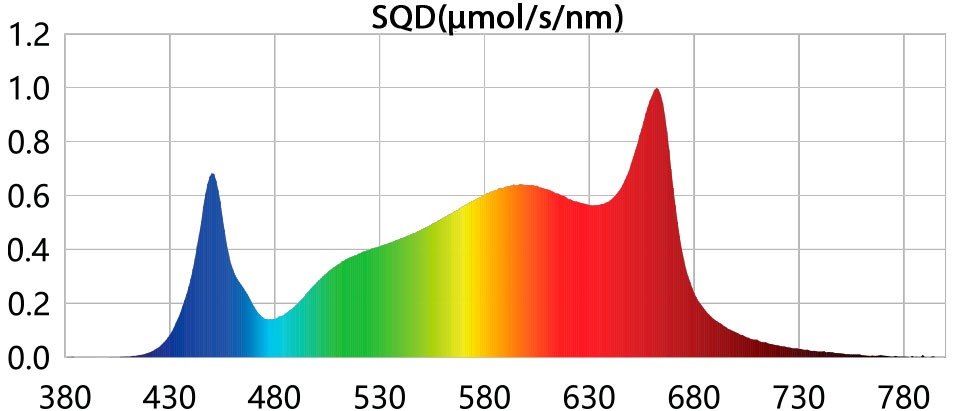

spectrum distribution chart

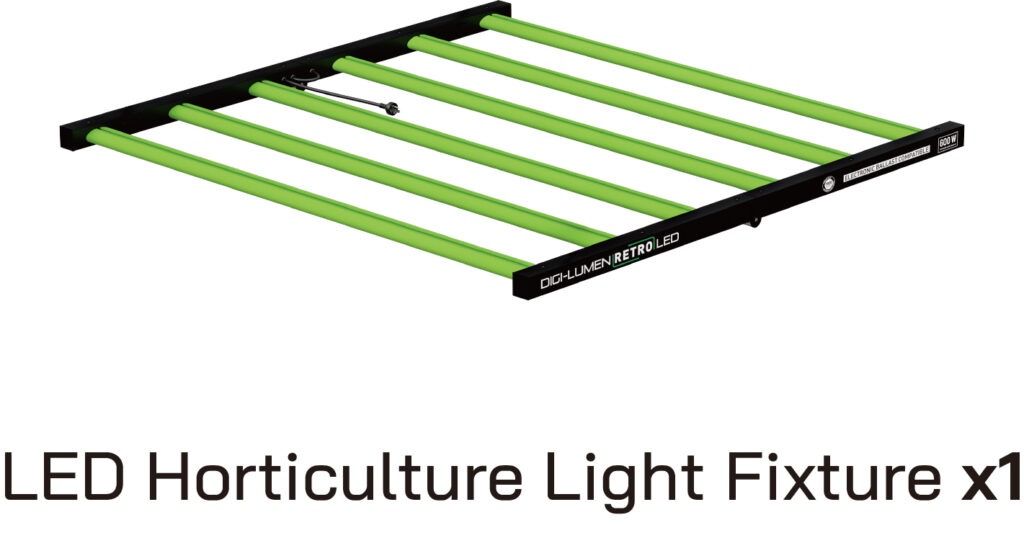

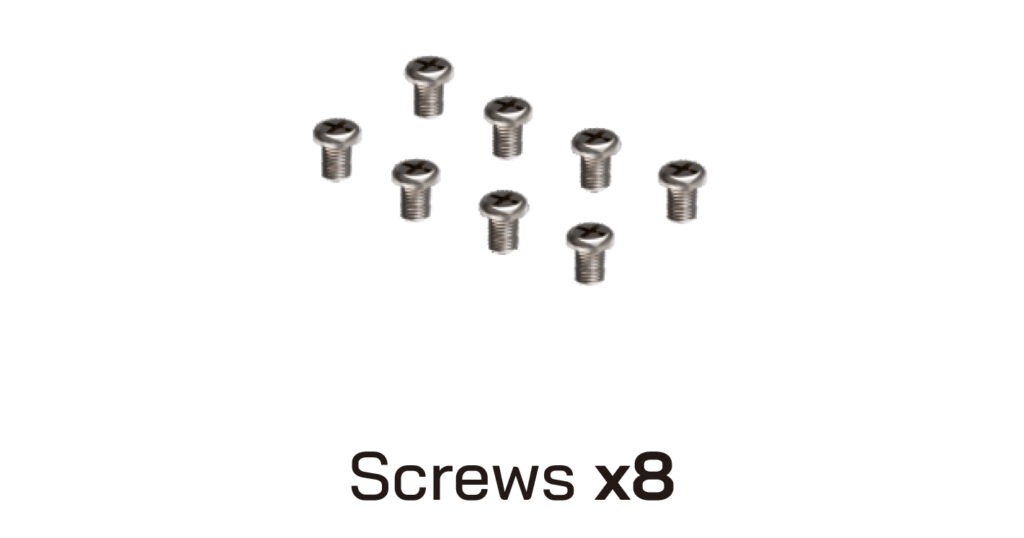

package Includes

Digilumen-Array-box_2nd

assembly Instructions

Preparation for installation
  • Arrange the place for the fixture to be mounted. Prepare appropriate “hangers” or any other tools to hang the fixture.
  • Take caution when handling light bars. Ensure the LED array does not come in contact with sharp objects or force that may damage the diodes.
    Unbox and unfold the fixture, then place it on a flat, stable surface.
  • Bring any additional tools and/or hardware that may be required to mount the fixture.
  • Switch off the main voltage.

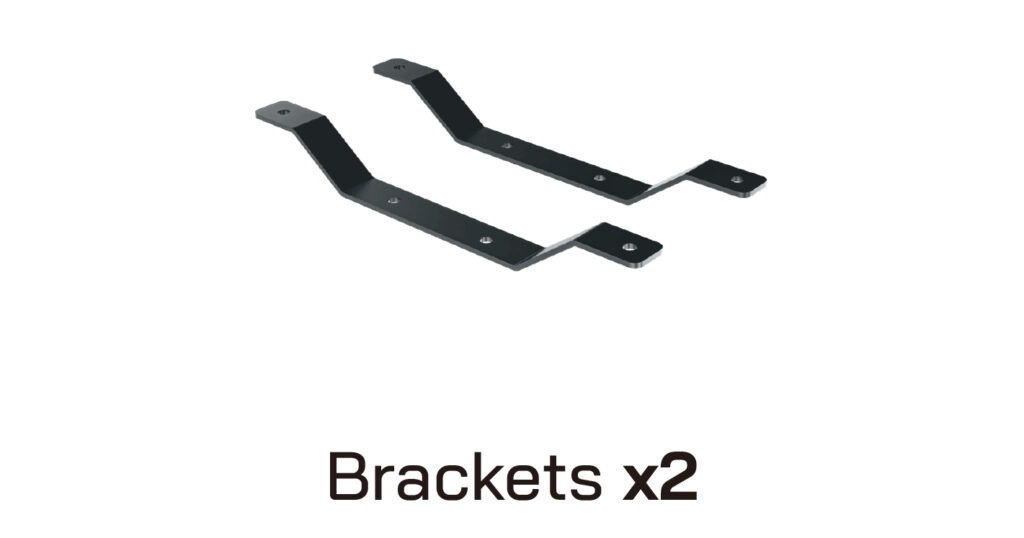

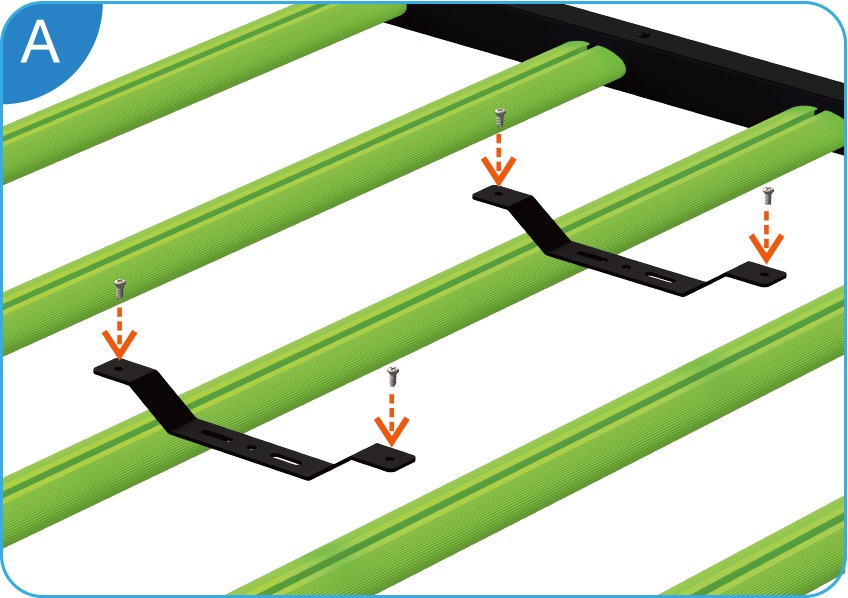

Fasten mounting bracket on LED light strip by 4 screws.

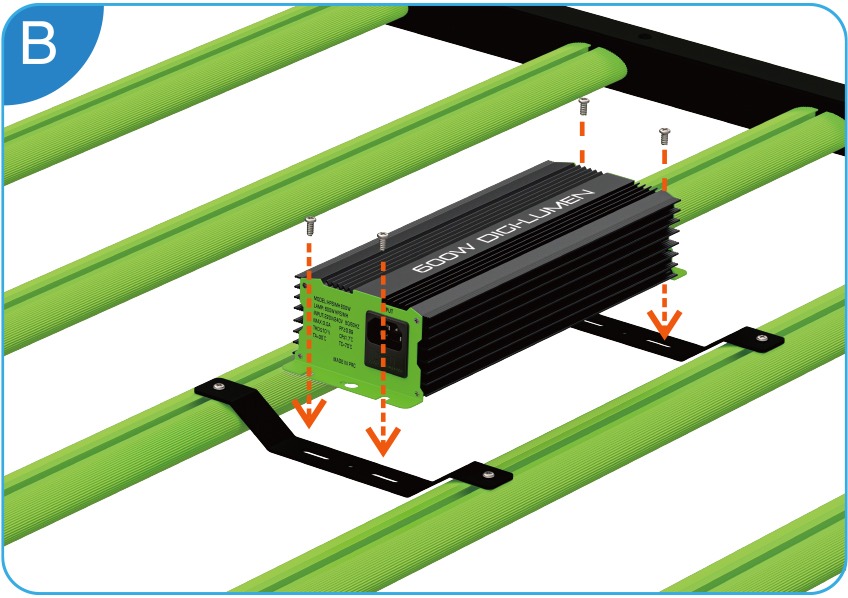

Fasten Power Supply (not included in the package) on mounting bracket by 4 screws. Only connect to 600 W Digital Ballast (Never connect directly to mains input).

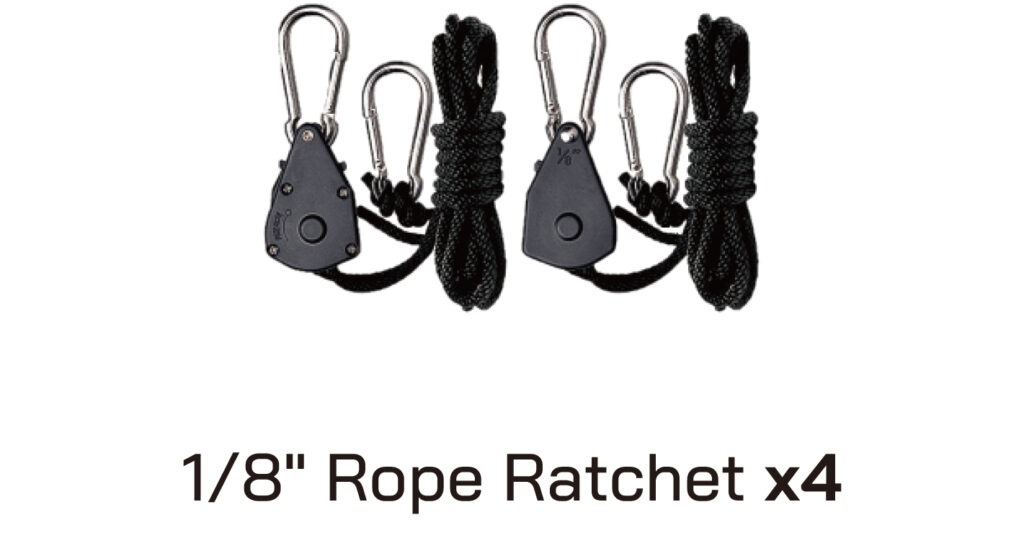

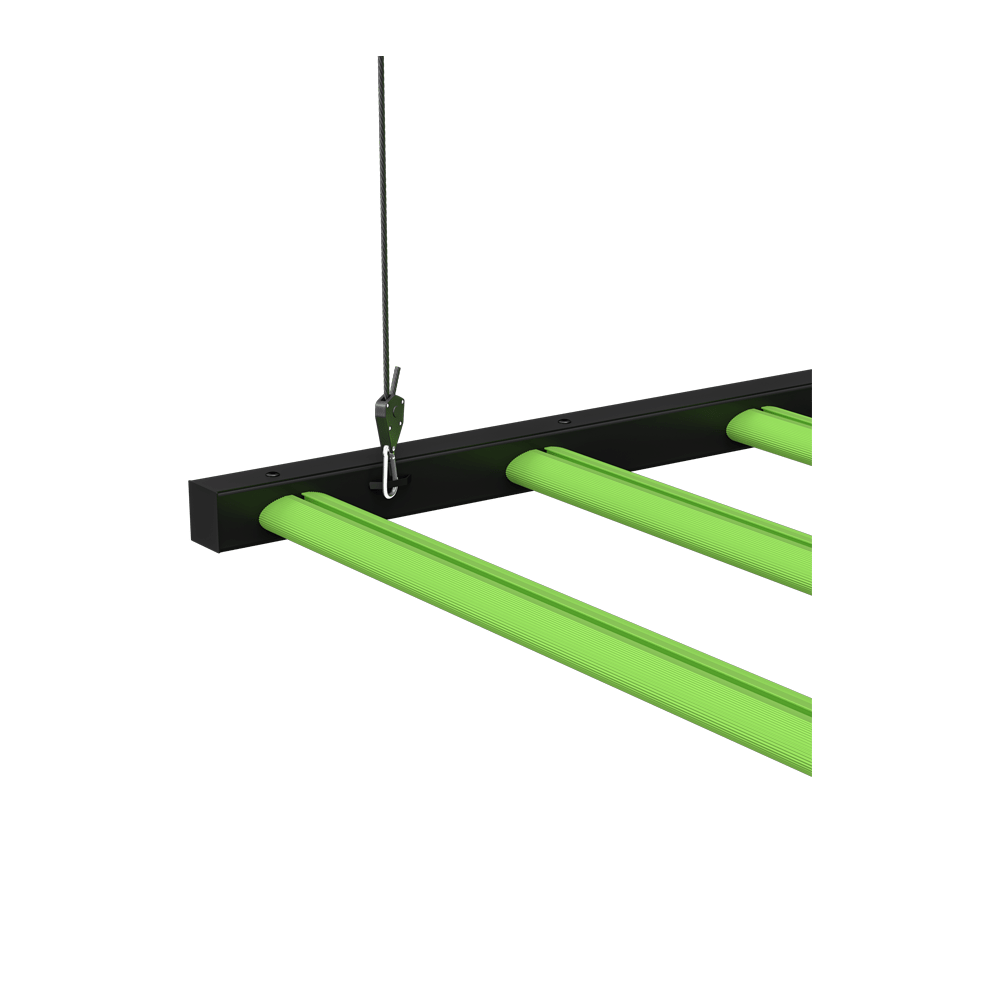

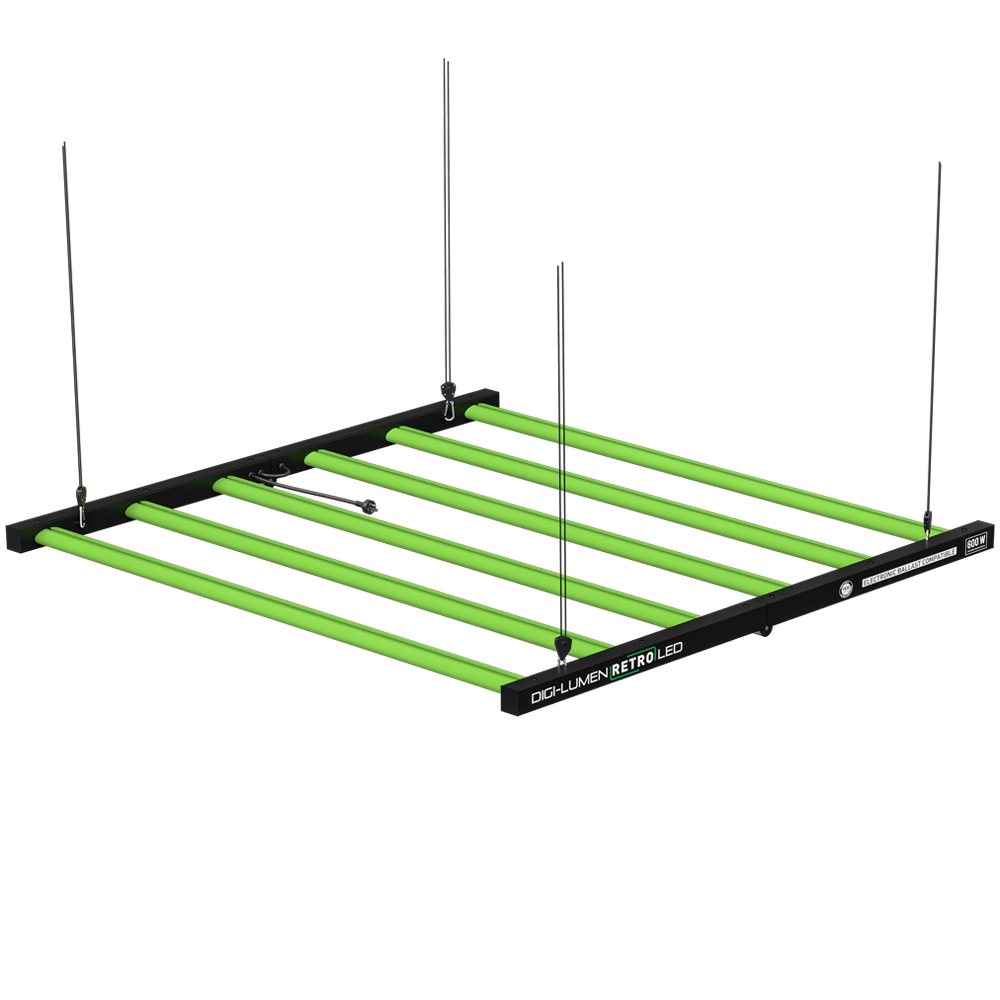

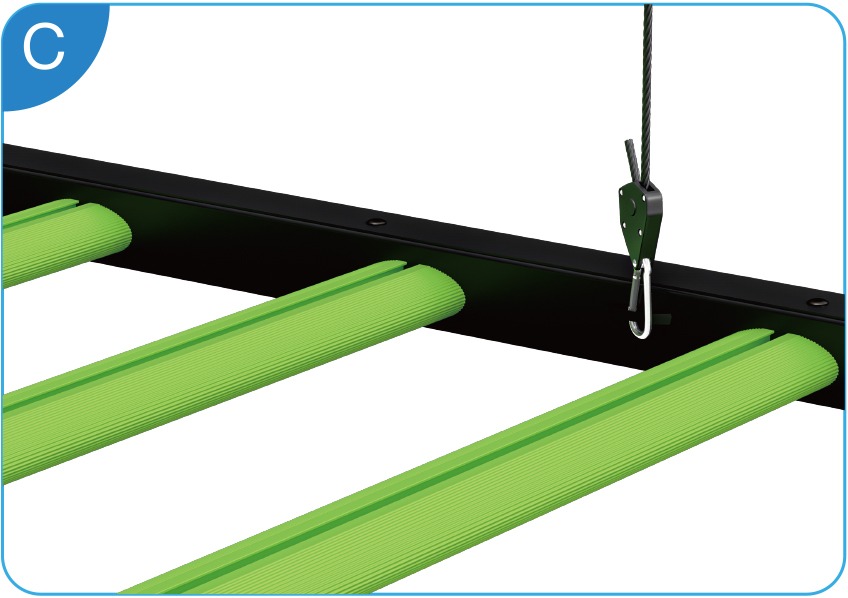

The LED fixture comes equipped 8 with hanging points. Use Rope Ratchet to pass through the hanging point of the LED fixture, and then fix the other end of Rope Ratchet on the ceiling of the greenhouse.

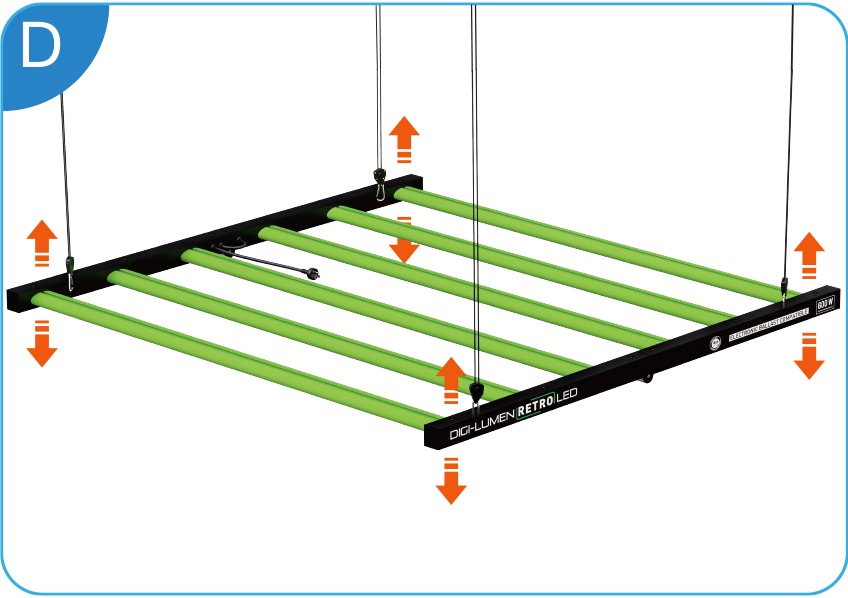

Distribute the fixture weight evenly so fixture hangs level. Upwards and downwards according to your crop height.

-UNPLUG YOUR HPS - PLUG IN AN LED -ELECTRONIC BALLAST COMPATIBLE

Digi-Lumen LEDs feature a perfect blend of both full-spectrum white and red LED diodes. This results in a perfectly balanced spectrum suitable for all phases of growth and bloom. The result is tight and compact plant growth with optimal morphogenesis & light uptake.
